Magento 2 Token Based Authentication

The purpose of this document is to give good understanding of how we will integrate to City Chic Magento 2 as they have build their own custom API which differs from the standard Magento 2 REST API. Official CityChic document:

WAP UAT.docx

The client have prepared an UAT environment where we can conduct all our tests and the API documentation for the UAT environment can be found here in Swagger https://ccadmin-m2.stage.guidance.com/swagger however in order to access it your IP need to be whitelisted (If you use VPN should be able to access it) also in order all the links mentioned in the scope to work properly first you need to generate your token and place it in the swagger (top right corner).

The backend admin portal for our UAT environment is located at https://ccadmin-m2.stage.guidance.com/sfgadmin

This domain is IP restricted; your IP will need to be whitelisted in order to access it. To get started please contact me in order to request the IP whitelist.

There is a user account setup for WAP: Username: pentagon Password: Bob1rad1 Email: radoslav.chernaev@wearepentagon.com

Please note that there is Google Auth and you will need to contact me for the authentication key.

Their UAT environment has the following stores setup:

Reseller Name	Store ID	Store Code	Warehouse Code
Walmart	31	walmart_us	us_online
Amazon USA	32	amazon_us	us_online
David Jones AU	33	david_jones_au	au_online
Zalando	34	zalando	--

General overview of the integration

New Hemi Tables and their fields: account_magento orders_magentoorder_item_magentomagento2_connectormagento2_sellerorder_payment_magento2

orders_magento		Default Value
Shipment Created	checkbox true or false	false
Shipment ID	Array (we can have more than 1 id)	0
Order Payment ID	integer	0

account_magento		Default Value
Magento 2 Seller	dropdown from where the relevant magneto 2 details will be picked	Empty Value

order_item_magento		Default Value
Item Id	integer	Empty Value

magento2_seller (slave table of magento2_connector)		Default Value

magento2_connector		Default Value
Username	text field	Empty Value
Password	password field	Empty Value
Endpoint	text field	Empty Value
Active	checkbox true or false	false

order_payment_magento2 (slave table of order_payment)		Default Value
Return Created	checkbox true or false	false
Return ID	integer field	Empty Value

magento2_seller (slave table of magento2_connector)		Default Value
Seller	dropdown from where we can select all our Hemi sellers	Empty Value
Store ID	integer field	Empty Value
Location	dropdown from where we can select all our Hemi locations	Empty Value
Account	dropdown from where we can select all our Hemi accounts	Empty Value
Store Code	text filed	Empty Value
Warehouse Code	text filed	Empty Value
Get Inventory	checkbox true or false	false
Export Orders	checkbox true or false	false
Get Products	checkbox true or false	false
Create Shipments	checkbox true or false	false
Create Return	checkbox true or false	false
Get Shipments	checkbox true or false	false
Sent Customer Notification	checkbox true or false	false

Why do we need all this because we are covering the both flows creating orders in Mangeto and downloading orders from Magento. When we are creating orders in Magento we need to know for which magento store id we are creating them Ebay - Store id:10, Amazon - Store id:20 etc thus in Magento 2 Connector table we will have which Hemi account to which Magento Store ID relates.

In the other case when are getting orders from Magento we will need to have Account Magento where to store the orders.

We can have as many as we need Mangento2 Connections and the crons should run for each active connection.

TOKEN BASED AUTHENTICATION

You will be able to get an access token to the API by making a request similar to this

curl -X POST "https://ccadmin-m2.stage.guidance.com/index.php/rest/V1/integration/admin/token"
-H "Content-Type:application/json"
-d '{"username":"pentagon", "password":"xxxxxx"}'

The token will expire after 24 hours and we will need to check if the token is active before every request. The token and the expiration date will be stored in magento2_connector for the relevant record.

Magento Search Criteria Logic

Here is some documentation on how to create filters in requests for the Magento API https://devdocs.magento.com/guides/v2.4/rest/performing-searches.html

searchCriteria[filter_groups][0][filters][0][field]=updated_at&
searchCriteria[filter_groups][0][filters][0][value]=2020-08-23 00:00:00&
searchCriteria[filter_groups][0][filters][0][condition_type]=from&
searchCriteria[filter_groups][1][filters][0][field]=status&
searchCriteria[filter_groups][1][filters][0][value]=shipped

Basically we are specifying field, value and condition_type. Field indicates which field we would like to filter then the value will be our latest order read record for the cron minus 15 minutes and the condition type is just to say from that period.

Error Handling

There are two types of error payloads we might recieve. One is if the json format is not correct we will get a response like:

<!doctype html>
<html xmlns="http://www.w3.org/1999/xhtml" >
    <head>
        <title>There has been an error processing your request</title>
        <base href="https://ccadmin-m2.stage.guidance.com/errors/citychic/" />
        <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
        <meta name="robots" content="*" />
        <meta name="viewport" content="width=device-width, initial-scale=1" />
        <link rel="stylesheet" href="css/styles.css" type="text/css" />
        <link rel="icon" href="images/favicon.ico" type="image/x-icon" />
        <link rel="shortcut icon" href="images/favicon.ico" type="image/x-icon" />
    </head>
    <body>
        <h2 style="display:none;">::CLOUDFLARE_ERROR_500S_BOX::</h2>
        <div class="page">
            <div class="header-container">
                <div class="header">
                    <a href="/" title="City Chic" class="logo"><img src="images/logo.jpg" alt="City Chic" /></a>
                </div>
            </div>
            <div class="main-container">
                <main class="page-main">

<h1>There has been an error processing your request</h1>
    <p><em>Exception printing is disabled by default for security reasons.</em></p>

    <p>Error log record number: d67024305dd84e2e632f2437ae2c7965a85018669a570a72d9970387fd31548d</p>
                </main>
            </div>
            <div class="footer-container">
                <div class="footer">
                    <address class="copyright">Copyright &copy; 2020 City Chic</address>
                </div>
            </div>
        </div>
    </body>
</html>

If we have such response we need to store and error like “There has been an error processing your request. Error log record number: d67024305dd84e2e632f2437ae2c7965a85018669a570a72d9970387fd31548d“

If the json format is correct but for some reason the request can not be processed we will recieve response like:

{
  "message": "Maximum shipping amount allowed to refund is: %1",
  "parameters": [
    "£0.99"
  ]
}

There may have many parameters but the important information is from message and as an error we store : "Maximum shipping amount allowed to refund is: 0.99" Please note %1 related to the first parameter so we in the error we will need to store"Maximum shipping amount allowed to refund is: 0.99"

OAUTH BASED AUTHENTICATION

Full doc details available here - https://devdocs.magento.com/guides/v2.4/get-started/authentication/gs-authentication-oauth.html

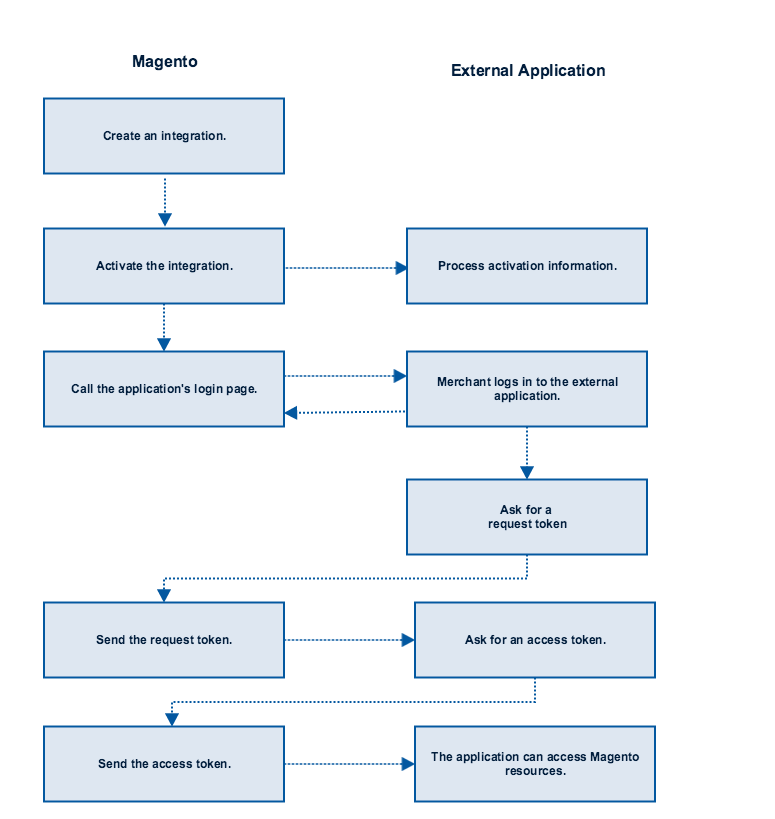

As the process of registering the integration proceeds, Magento creates the tokens that the application needs for authentication. It first creates a request token. This token is short-lived and must be exchanged for an access token. Access tokens are long-lived and will not expire unless the merchant revokes access from the application.

The flow will include couple of steps once Magento 2 provides the OAuth consumer key and secret we can use the to obtain request token and request token secret. Then we have one more step which uses the request token in order to obtain the access token and access token secret.

POST Request token and request token secret

API CALL - POST /oauth/token/request

You must include these request parameters in the Authorization header in the call:

PARAMETER	Mapping	DESCRIPTION
`oauth_consumer_key`		The consumer key is generated when you create the integration.
`oauth_signature_method`		The name of the signature method used to sign the request. Must be the value `HMAC-SHA1`.
`oauth_signature`		A generated value (signature)
`oauth_nonce`		A random value that is uniquely generated by the application.
`oauth_timestamp`		A positive integer, expressed in the number of seconds since January 1, 1970 00:00:00 GMT.
`oauth_version`		The OAuth version.

The response contains these fields:

oauth_token. The token to be used when requesting an access token.

oauth_token_secret. A secret value that establishes ownership of the token.

A valid response looks like this:

oauth_token=4cqw0r7vo0s5goyyqnjb72sqj3vxwr0h&oauth_token_secret=rig3x3j5a9z5j6d4ubjwyf9f1l21itrr

POST Access token and access token secret

API CALL - POST /oauth/token/access

The request token must be exchanged for an access token. Use the following API to get an access token from Magento:

You must include these request parameters in the Authorization header in the call:

PARAMETER	Mapping	DESCRIPTION
`oauth_consumer_key`		The consumer key value that you retrieve after you register the integration.
`oauth_nonce`		A random value that is uniquely generated by the application.
`oauth_signature`		A generated value (signature)
`oauth_signature_method`		The name of the signature method used to sign the request. Must be the value `HMAC-SHA1`.
`oauth_timestamp`		A positive integer, expressed in the number of seconds since January 1, 1970 00:00:00 GMT.
`oauth_version`		The OAuth version.
`oauth_token`		The `oauth_token` value, or request token, obtained in

Get a request token . | | oauth_verifier | | The verification code that is tied to the consumer and request token. It is sent as part of the initial POST operation when the integration is activated. |

A valid response looks like this: oauth_token=0lnuajnuzeei2o8xcddii5us77xnb6v0&oauth_token_secret=1c6d2hycnir5ygf39fycs6zhtaagx8pd

The response contains these fields:

oauth_token. The access token that provides access to protected resources.

oauth_token_secret. The secret that is associated with the access token.

Generating the OAuth-singature

All OAuth handshake requests and Web Api requests include the signature as part of Authorization header. Its generated as follows:

You concatenate a set of URL-encoded attributes and parameters to construct the signature base string.

Use the ampersand (&) character to concatenate these attributes and parameters:

HTTP method
URL
oauth_nonce

oauth_signature_method

oauth_timestamp

oauth_version

oauth_consumer_key

oauth_token

To generate the signature, you must use the HMAC-SHA1 signature method. The signing key is the concatenated values of the consumer secret and token secret separated by the ampersand (&) character (ASCII code 38), even if empty. You must use parameter encoding to encode each value.

Changes in the WEB APIs

After the integration is authorized to make API calls, third-party applications (registered as integrations in Magento) can invoke Magento web APIs by using the access token.

To use the access token to make web API calls:

GET /rest/V1/products/1234

You must include these request parameters in the Authorization request header in the call:

oauth_consumer_key. The customer key value provided after the registration of the application.

oauth_nonce. A random value, uniquely generated by the application.

oauth_signature_method. The name of the signature method used to sign the request. Valid values are: HMAC-SHA1, RSA-SHA1, and PLAINTEXT.

oauth_signature. A generated value (signature).

oauth_timestamp. A positive integer, expressed in the number of seconds since January 1, 1970 00:00:00 GMT.

oauth_token. The oauth_token, or access token, value obtained in Get an access token.
